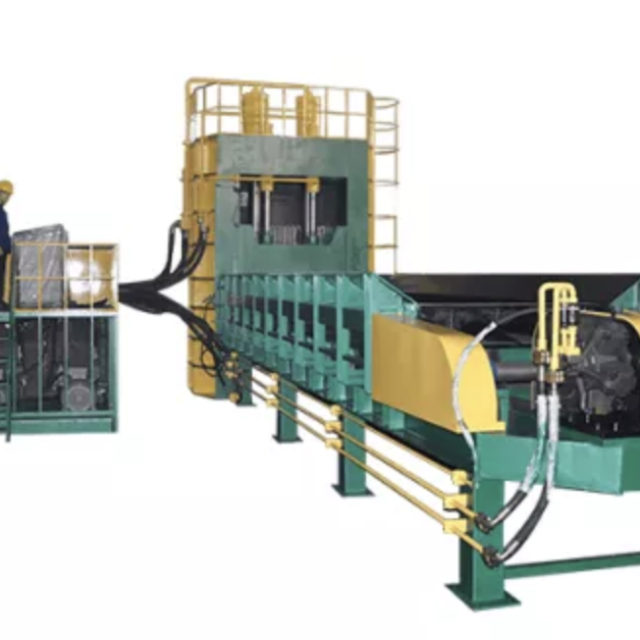

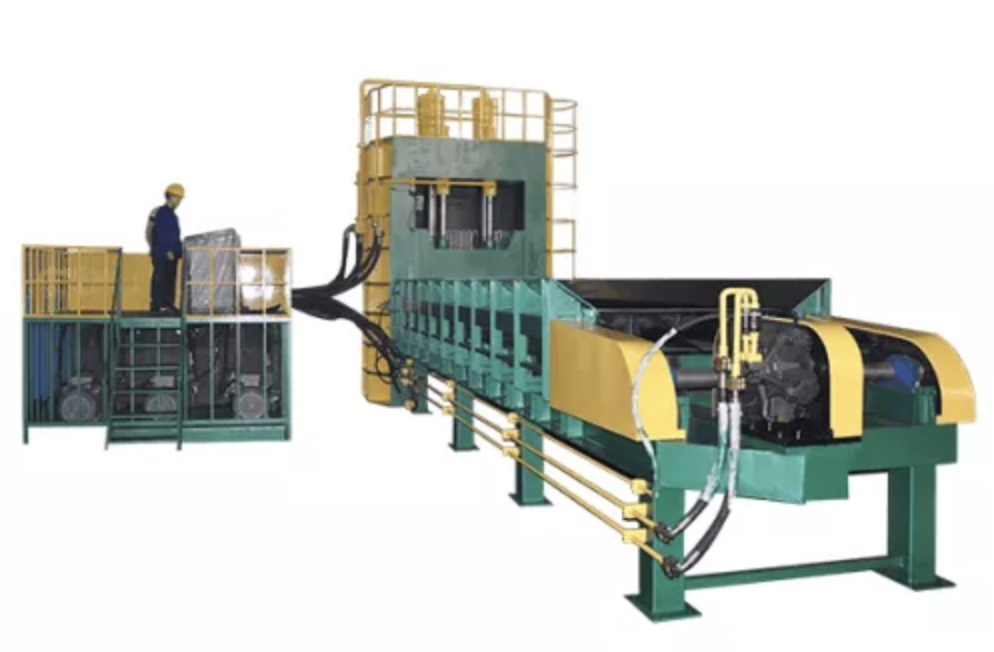

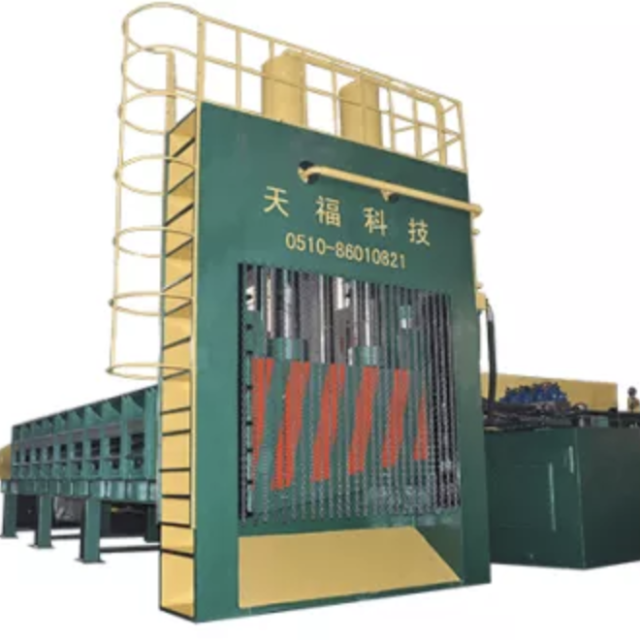

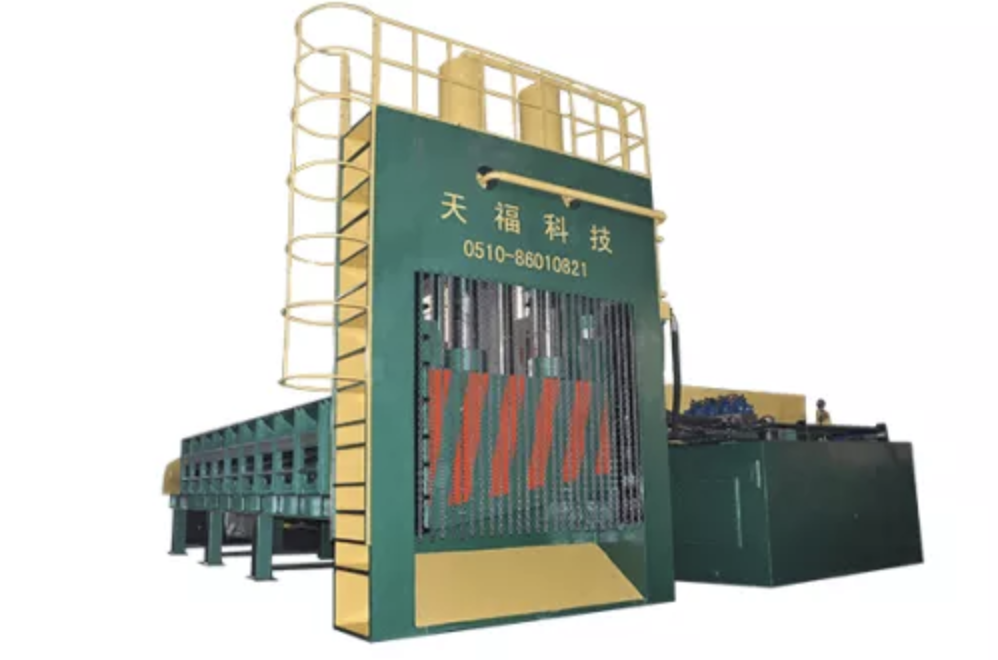

Heavy Duty Scrap Shear
product
Information
-
Hydraulic drive,manual valve operation,or automatic running by remote control induction
It makes dense bales also shears the scraps.
It may compress and cuts big size scraps with its huge feeding box .
Capacity is between 5 to 30 ton /hour.
No-contact sensors to avoid re-calibration.
Structure
- Strong Body for Heavy Duty
- Original Hardox anti-wear plates
- High quality heavy duty cylinders (Hardened and chrom-coated piston rots , speacial honed pipes)
- The best quality brands are used in hydraulic and electronic parts
- Hydraulic unit design producing high force with low consumption
List of the materials to process
- Fe, Al, Cu, Cr-Ni Scraps
- Ferrous and non-ferrous
- Aluminium Extrusions
- Sheet and plates
- Mixed Scrap
List of the factories may need
- Scrap Yards
- Casting Plants
Q91 Heavy-duty scrap shear
|
Model |
(ton) |
(mm) |
(mm) |
(t/h) |
（tim/min） |
(KW) |
|
Q91Y-3150W |
315 |
5000X1500X700 |
1500 |
2-5 |
2-3 |
2X30KW |
|
Q91Y-4000W |
400 |
6000X1600X700 |
1600 |
3-6 |
2-3 |
3X30KW/2X45KW |
|
500 |
1600 |
4-8 |
2-3 |
4X37KW/4X45KW |
||
|
Q91Y-6300W |
630 |
8000X1800X900 |
1800 |
6-12 |
2.5-3 |
5X37KW/5X45KW |
|
Q91Y-8000W |
800 |
8000X2000X900 |
2000 |
10-15 |
2.5-3 |
6X37KW/6X45KW |
|
Q91Y-1000T |
1000 |
10000X2000X1100 |
2000 |
15-25 |
2.5-3 |
7X37KW/7X45KW |
|
Q91Y-1250T |
1250 |
10000X2000X1200 |
2000 |
20-30 |
2.5-3 |
8X37KW/8X45KW |
